Shanghai DEMAC T30/T50 Thermal Transfer Overprinter/ 32mm/53mm printhead TTO Smart Coding Machine

  • >=1 Sets
    $1,980.00
Model Number:
T30
Power:
200 W
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Bracket Length (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Coding Machine
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Automatic Grade:
Automatic
Application:
Batch No., Date Of Mfg., Expiry Date, Name, etc.
Place of Origin:
China
Brand Name:
DEMAC
Packaging Material:
Paper
Packaging Type:
Cartons
Driven Type:
Pneumatic
Voltage:
AV 110~240 V, 50/60 Hz
Dimension(L*W*H):
190*180*170 mm
Weight:
Print Unit: 7.5 kg; Controller Box: 0.75 kg
Certification:
MSDS
Warranty:
1 YEAR
After-sales Service Provided:
Online support
Key Selling Points:
Ribbon Saving
High speed:
300 dpi resolution
The more stable performance:
cost-effctive smart coder
Accurate printing position:
cheap
automatic repeat print:
position-compensation print
Demac T30:
18 monthes warranty
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Small carton: include 1 piece; 82 cm x 17 cm x 25 cm; ~11 kg.
Big carton: include 2 pcs; 83 cm x 32 cm x 27 cm; ~ 22 kg.
Port
Any port in China
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Products Description

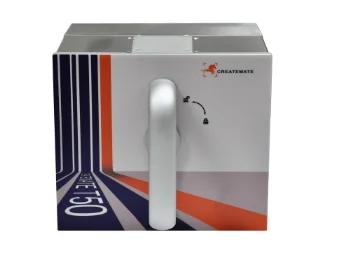

T30 & T50 CREATEMATE T series Thermal Transfer Overprinter

With 32/53 mm print head, T30 & T50 TTO Printer are one of the world's best cost-effective smart coding machines that can meet the personalized and diversified demands of customers, praised by the users in various industries such as food, medicine, daily chemical, seeds, veterinary drugs, pesticides, household paper, finance, etc.

T30 TTO Printer

32mm Printhead
Intermittent/Continuous Combined

T50 TTO Printer

53mm Printhead
Intermittent/Continuous Combined
Intermittent/Continuous Mode Combined
Choose which Mode as you like! (A universal hand direction)

 Features:

  • ◆Intermittent/Continuous Combined – more flexible to meet customers’ coding requirements.

  • ◆Excellent Quality Prints – improving your company brand image and quality.

  • ◆Wide Printing Area – maximum 90mm (intermittent) and 150mm (continuous) in length

  • ◆Superior Printing Speed – can be set from 33mm to 666mm per second allowing 350 printed packs per min at 300dpi

  • ◆More Print Flexibility – can print real time, variable data, bar codes, QR codes, logo, pictures, dates, nutrition tables, etc. and can achieve the product traceability.

  • ◆Ribbon Saving – 0.1mm gap between prints, help to minimize reduce ribbon consumption and waste.

  •  Free Editing in Multiple Languages – Simplified Chinese, English, traditional Chinese, Spanish, Portuguese, French, Arabic, German, Russian, etc.


Free Editing in the PC

No matter what you want to print in Iranian calendar,  Persian calendar, or the Special Language, you can edit it freely.

Especially Bar Codes:
Code128(Support GS1 Mode),
EANX, Code11,
QR code(Support GS1 Mode),
C25matrix,
C25inter, C25iata,
Upca, Upce,
EAN128,
PDF417,
DataMatrix(Support GS1 Mode), etc.


Hot-plugging Handle Touch Pad
‘One-to-Many’ (One Handle Touch Pad controls multiple machines)
Dockable 7-inch LCD handheld Touch Pad can be removed during the printer running, to control different printer units, largely reducing the cost.
* Up to 6 machines can be controled at the same time in the PC ( after successful upgrade).

High-performance Printing

* Introducing intelligent printhead, with automatic setup for optimum print quality.
* Optional promotional coding feature allowing for a unique code on each pack.
Specifications

Model
T30
T50
Intermittent
Continuous
Intermittent
Continuous
Print Head
32mm,300dpi (12points/mm)
53mm, 300dpi
Print Area
32mm*60mm
32mm*150mm
53mm*90mm
53mm*150mm
Print Speed
≤30 m/min
≤40 m/min
≤30 m/min
≤40 m/min
Print Frequency
≤200 times/min
≤350 times/min
≤200 times/min
≤350 times/min
Print Job
Real time clock (hours/minutes), dates, user entered alphanumeric date, automatic shift code, automatic serial number, logos, barcodes, QR codes, nutrition tables, etc.
PC Based Interface
Include all features of the Touch Pad interface, support promotional codes, unique random codes, manage max. 6 printer units meantime, provide communications protocols.
More features
Ribbon saving modes; automatic repeat prints; position-compensation prints (can have multiple choices)
Max Ribbon Length
500m

600m
Ribbon Width
22mm~33mm
35mm~55mm
Touch Pad
Support Hot-plugging
COM Interface
USB,RS232,TCP/IP
Power Supply
AV110~240V 50/60Hz
Power
200W
Working Env.
Temperature: 0-40℃ ; Humidity: 10-90% (non-condensing)
Air Supply
0.35~0.6Mpa, Dry, Clean
Weight
Print Unit: 7.5kg, Touch Pad: 0.75kg
Print Unit: 8.0kg, Touch Pad: 0.75kg
Dimension(L*W*H)
Print Unit: 190mm*180mm*170 (mm)
Print Unit: 210mm*180mm*170 (mm)
Handheld Touch Pad: 220mm*120mm*30 (mm)

Suitable material:

Plastic film PT, PE, PVC, OPP, KT, aluminum foil;
All kinds of plastic composites, plastic bags, paper, stickers, cards), leather, cloth;
Packing container bags, plastic products;
Coated, Synthetics, Polypropylene & Polyester, Flexible Packaging, etc.

Print Samples
Optional Accessories
Code-detection System
( To avoid missing/incomplete/wrong prints bring any disputes and legal liability)
◆ PC Based Interface
(Friendly interface makes the menu & parameters setting convenient)
◆ Mounting Bracket
(Optional standard mounting bracket helps installation become easy)
◆ Encoder Assy
(Only used in continuous mode, support synchronous tracking with the packing machine, ensuring high efficient printing)
Related Products
Certifications
Packing & Delivery

Shipping method: By sea, by air, by international express company.

Delivery time: 10-15 days after order confirm.

Forwarder: We have shipping forwarder agent for sending the goods to customers all over the world, and can arrange shipment to destination port ,even to the door for customer.

We also accept forwarder agent of customer.

The goods are packed in foam, plastic and cartons  to ensure a good condition during transportation.

Company Profile

Shanghai Demac Machinery Equipment Co.,Ltd. is a technology-oriented manufacturer integrating independent research and development, production, sales, service and other businesses. It is committed to providing industrial code marking technology, inspection technology, system solutions of traceable products, and production and sales services for related equipment products.

High efficiency and professional service make our company have a good reputation in this industry.



With more than 15 years of experience, the company has provided the best product identification solutions for customers in more than 70 countries around the world.



Our company has dozens of dealers and partners in the world, and provides perfect and careful after-sales service and technical support for customers from local and surrounding markets.

The above pictures are from domestic and international exhibitions.
Why Choose Us

Benefit from Our Competitive Strengths

We are committed to deliver your orders within the stipulated time, as it plays a vital role in establishing our company as a reliable brand. Our wide distribution network and flexibility in production and service enable us to meet your objectives.

Several factors have made us the preferred choice of our valued clients:

  • ♦ Client-centric approach
  •  ♦ Assurance of optimum quality in our products
  •  ♦ OEM and customized service
  • ♦ Ability to undertake bulk and urgent requirements
  • ♦ Timely deliveries
  • ♦ Competitive pricing policy
  •  1-year warranty
FAQ
  1. Q: What’s your product range?

 A: Hot Ink CoderLaser Coder, Thermal Transfer Overprinter (TTO),Laser Coder,  Thermal Inkjet Coder (TIJ),

 Code Inspection System, etc.

Office Consumables:TTO Ribbons, Hot Ink Roll, Hot Stamping Ribbon, Metal Types(steel & brass) Holder


Q: Are You a Manufacturer?

A: Yes, 15 years specialized in hot ink coderhot stamp coder, thermal transfer overprinter (TTO),integrating independent research and development, production, sales, service and other businesses.


Q: What Information Shall offered if I Want to Get one Quotation?

 A: The print content, material, speed, size, type, direction, color, quantity.


Q:Do you provide custom barcode ribbons?

A: Yes, we could provide custom size even custom formulation per client request.

We have color ribbon in Gold, White,Silver,Yellow,Grey,Red,Blue,Green, etc.


Q:What's the Minimum Order Quantity and warranty?

A: MOQ: 1 set  Warranty:12 months.


Q:How about your warranty?

A: We provide 12 months warranty against BL date, if any issues,please contact us for solution.We will response within 24 hours in the first time.


Q:What is your payment?

A:TT,LC,Western Union,Paypal,Money gram or negotiation payment etc.


Q:How do you ship the products?

A: -By sea

 -By air

 -By courier, DHL, FEDEX, TNT, UPS, EMS. etc.



Q: Why choose your company?

We have been engaged in the manufacturing of various packing machines professionally over 15 years, and we can provide better after-sales service.
